或门&或非门

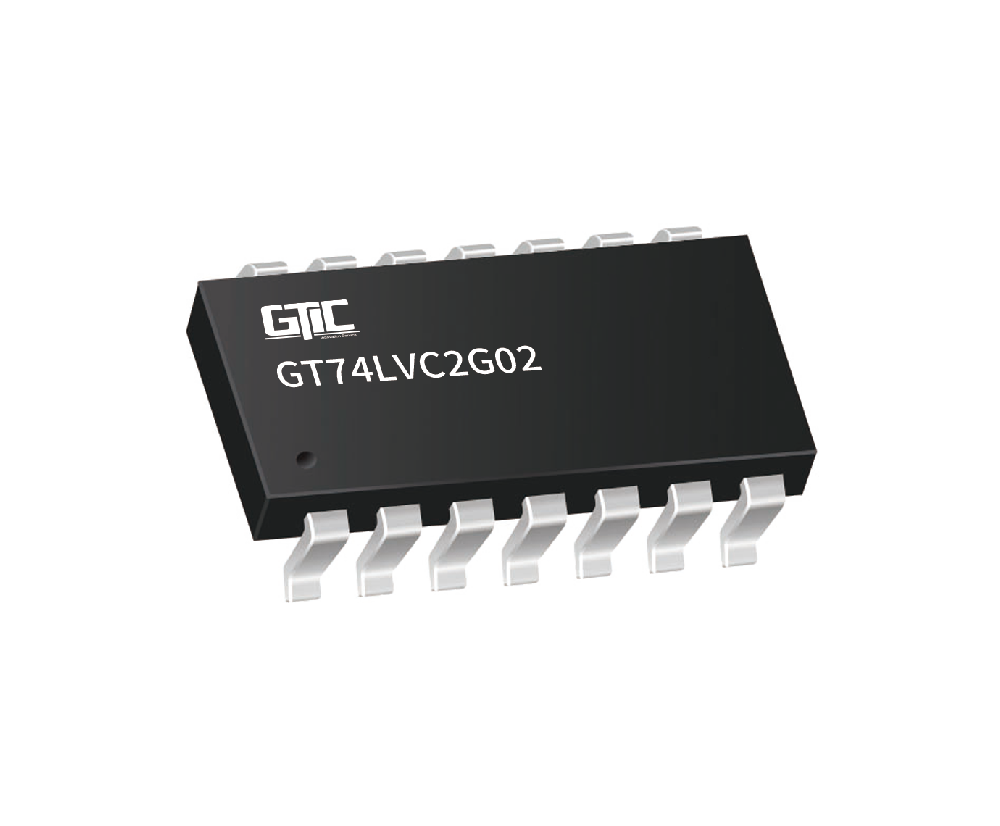

GT74LVC2G02

This dual 2-input positive-NOR gate is designed for 1.65-V to 5.5-VVoc operation.

The GT74LVC2G02 device performs the Boolean functionY=A+B or Y=A·B in positive logic.The CMOS devicehas high output drive while maintaining low static powerdssipation overa broad Vcc operating range.

This device is fully specified for partial-power-downapplications using lon.The lof circuitry prevents damagingcurrent backflow through the device when the gate ispowered downandits output is floating
