反相器

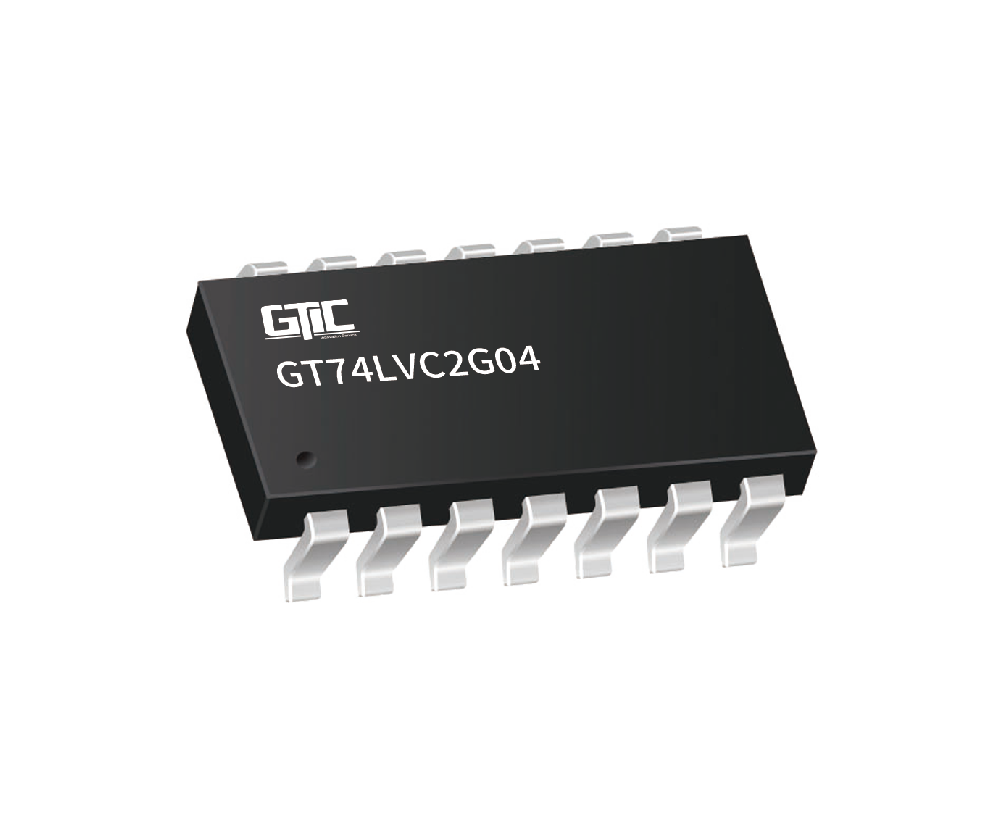

GT74LVC2G04
The operating voltage range of the dual inverter is 1.65 V to 5.5 V. The GT74LVC2G04 device contains double inverter and performs the Boolean function Y=A. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
特性
- Low power consumption, 10-μA max ICC
- Supports 5 V VCC operation
- Inputs accept voltages to 5.5 V
- Max tpd of 3.3 ns at 3.3 V
- ±24-mA output drive at 3.3 V
- Ioff supports partial-power-down mode
- Typical VOHV > 2 V at VCC = 3.3 V, TA = 25°C
- Typical VOLP < 0.8 V at VCC = 3.3 V, TA = 25°C
应用
- AV receivers
- Audio docks: portable
- Blu-ray players and home theater
- Embedded PC
- MP3 player/recorder (portable audio)
- Personal digital assistant (PDA)
- Power: telecom/server AC/DC supply
- Solid state drive (SSD): client and enterprise
- TV: LCD/digital and high-definition (HDTV)
- Tablet: enterprise - Video analytics: server
- Wireless headset, keyboard, and mouse
