缓冲器

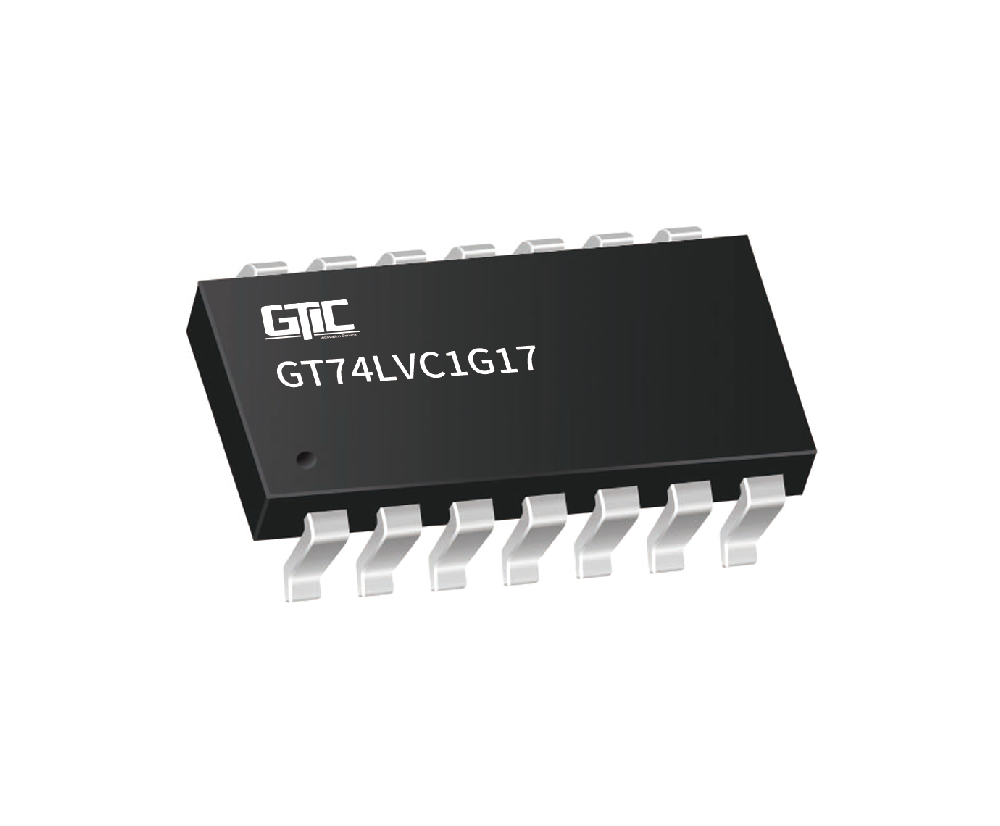

GT74LVC1G17
The operating voltage range of the GT74LVC1G17 single Schmitt-trigger buffer is 1.65 V to 5.5 V. The GT74LVC1G17 device contains one buffer and performs the Boolean function Y=A. Because of the Schmitt-Trigger inputs, the device may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals, to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
特性
- Schmitt-Trigger inputs provide hysteresis
- Supports 5 V VCC Operation
- Inputs Accept Voltages to 5.5 V
- Max tpd of 5.4 ns at 3.3 V
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode
应用
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players and Home Theater
- MP3 Players/Recorders
- Personal Digital Assistants (PDAs)
- Power: Telecom/Server AC/DC Supply
- Solid State Drives (SSDs): Client and Enterprise
- TVs: LCD/Digital and High-Definition (HDTVs)
- Tablets: Enterprise
- Wireless Headsets, Keyboards, and Mice
