缓冲器

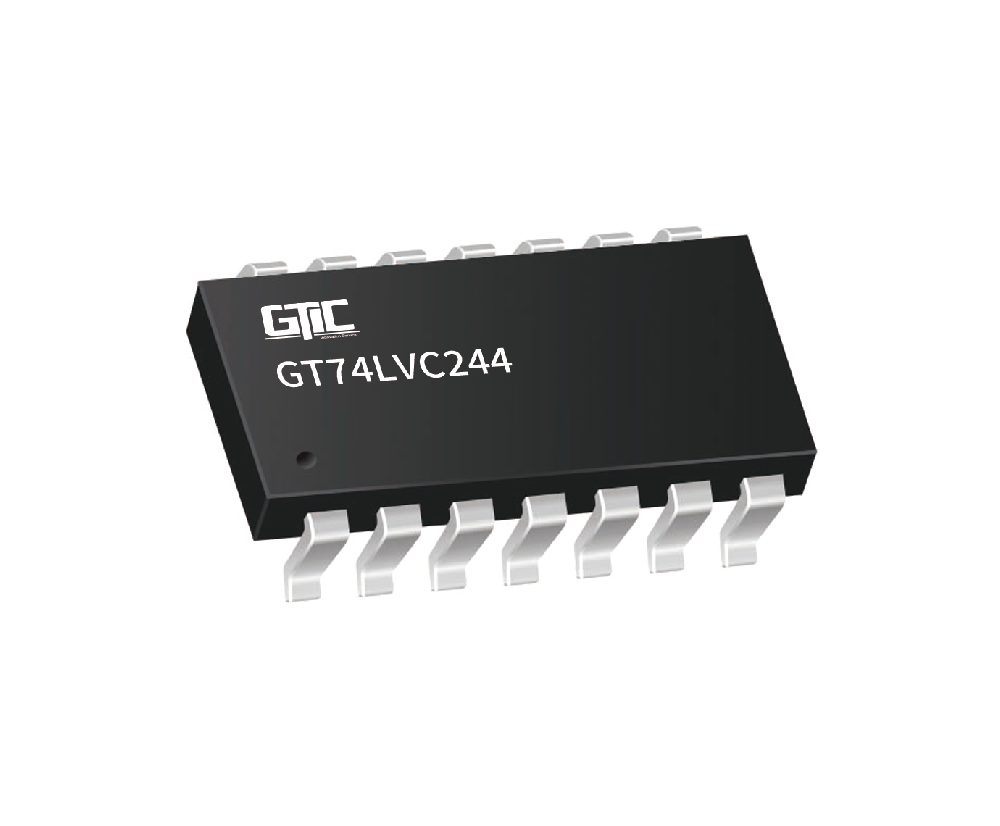

GT74LVC244

The operating voltage range of the bus buffer gate is 1.65 V to 5.5 V. The GT74LVC244 devices are designed for asynchronous communication between data buses.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

特性

- 3-State output

- Supports 5 V VCC operation

- Inputs accept voltages to 5.5 V

- Max tpd of 4.7 ns at 3.3 V

- ±24-mA output drive at 3.3 V

- Ioff supports partial-power-down mode

应用

- Servers

- LED displays

- Network switches

- Telecom infrastructure

- Motor drivers

- I/O expanders
