或门&或非门

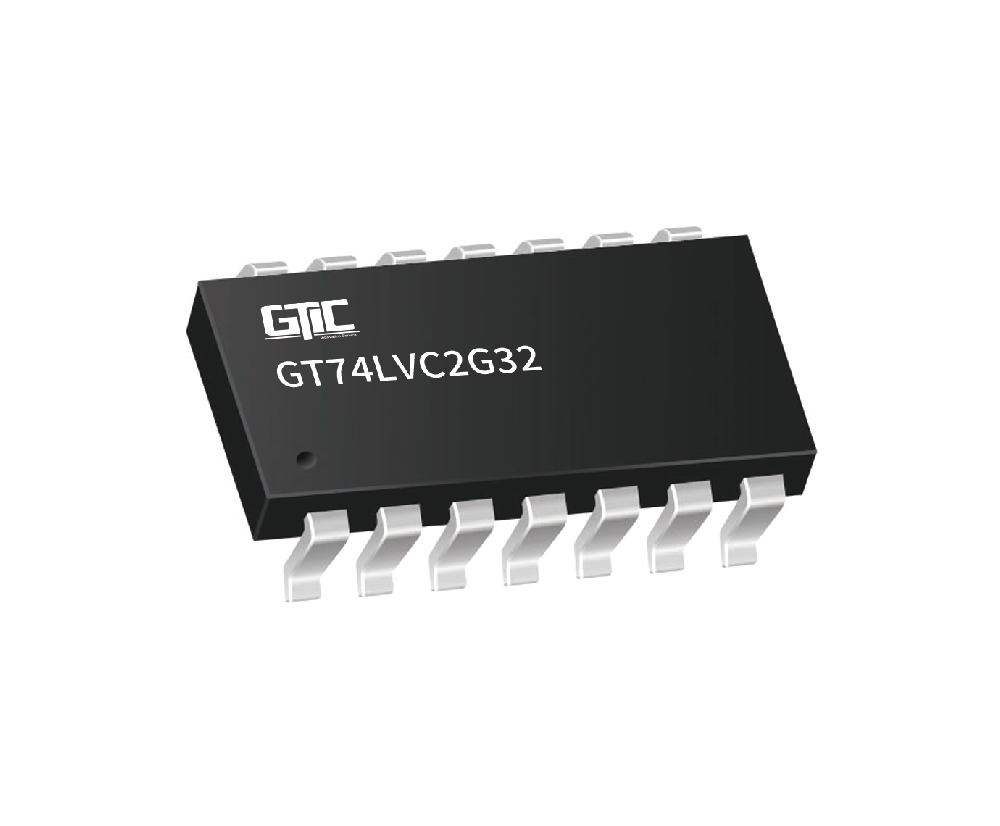

GT74LVC2G32
This dual 2-input positive-OR gate is designed for 1.65-Vto 5.5-VVoc operation.
The GT74LVC2G32 performs the Boolean functionY=A+B or Y=A·B in positive logic.The CMOSdevice has high output drive while maintaining lowstatic power dissipation over a broad Vcc operatingrange.
This device is fully specified for partial-power-downapplications using loft.The loff circuitry disables theoutputs,preventing damaging current backflow throughthe device when it is powered down
特性
- Operate from 1.65 V to 5.5 V
- Supports 5-V VCC operation
- Specified from -40°C to 125°C
- Provides down translation to VCC
- Max tpd of 3.8 ns at 3.3 V - ±24-mA output drive at 3.3 V
应用
- Personal navigation device (GPS)
- AV receiver
- High-speed data acquisition and generation
- SSD: internal and external
- Digital picture frame (DPF)
- TV: LCD/digital and high-definition (HDTV)
