或门&或非门

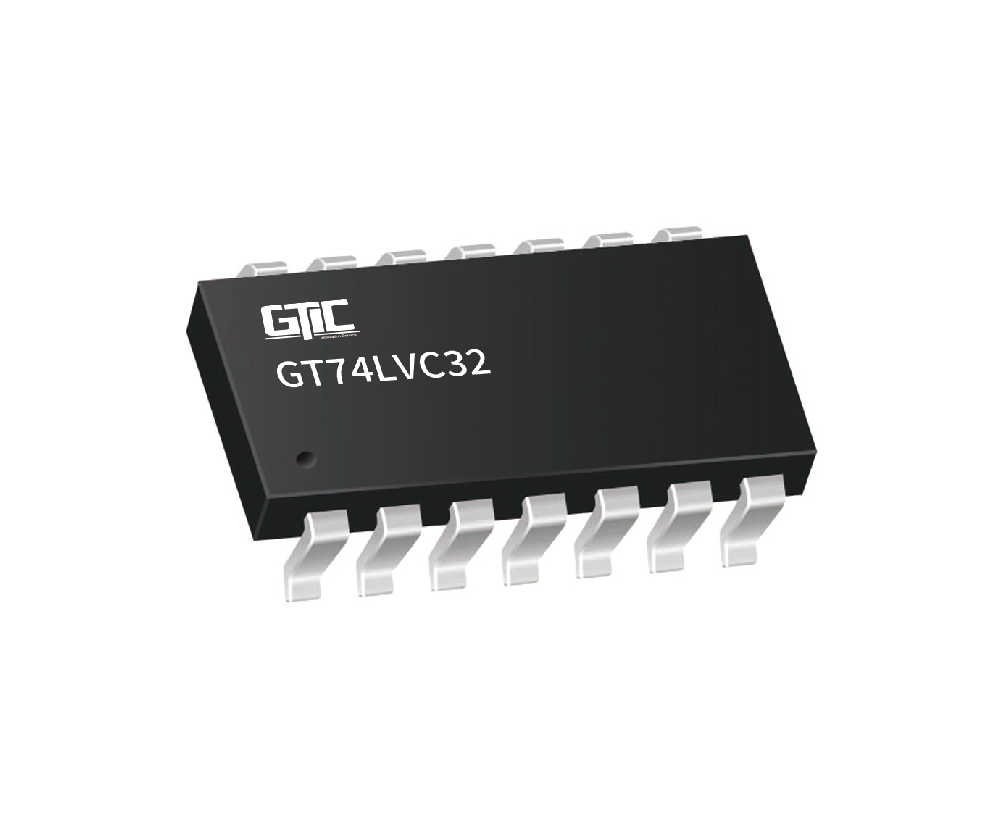

GT74LVC32
This quadruple 2-input positive-OR gate is designed for 1.65-V to 5.5-VVoc operation.
The GT74LVC32 performs the Boolean function Y=A+Bor Y=A·Bin positive logic.The CMOSdevice has highoutput drive while maintaining low static powerdissipation over a broadVccoperating range.
This device is fully specified for partial-power-downapplications using loff.The loff circuitry disables theoutputs,preventing damaging current backflow throughthe device when it is powered down.
特性
- Operate from 1.65 V to 5.5 V
- Supports 5-V VCC operation
- Specified from -40°C to 125°C
- Provides down translation to VCC
- Max tpd of 3.8 ns at 3.3 V
- ±24-mA output drive at 3.3 V
应用
- Personal digital assistant
- AV receivers
- MP3 player/recorder
- Solid state drives (SSDs): client and enterprise
- Audio docks: portable
- TVs: LCD/digital and high-definition (HDTV)
