或门&或非门

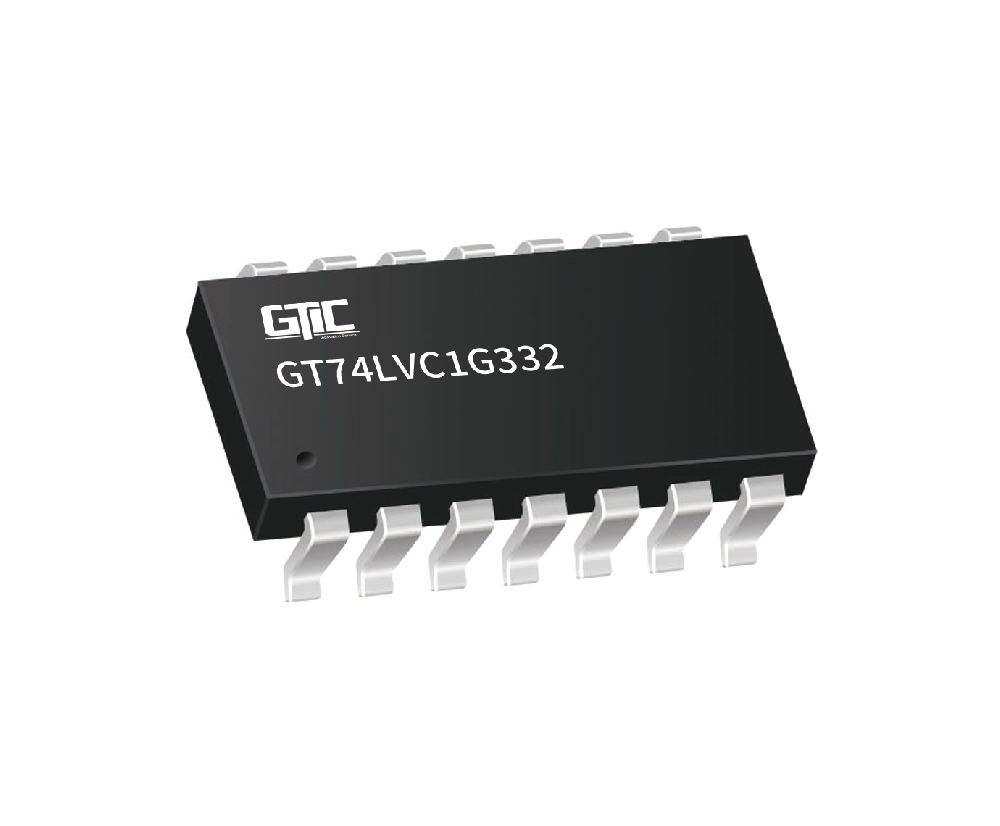

GT74LVC1G332

This single 3-input positive-OR gate is designed for 1.65-V to 5.5-VVcc operation.

The GT74LVC1G332 device performs the Boolean functionY=A+B+C or Y=A·官c in positive logic.The CMOsdevice has high output drive while maintaining low staticpower dissipation over a broad Vcc operating range.

This device is fully specified for partial-power-downapplications using lof.The loff circuitry prevents damagingcurrent backflow through the device when the gate ispowered down andits output is floating.
