或门&或非门

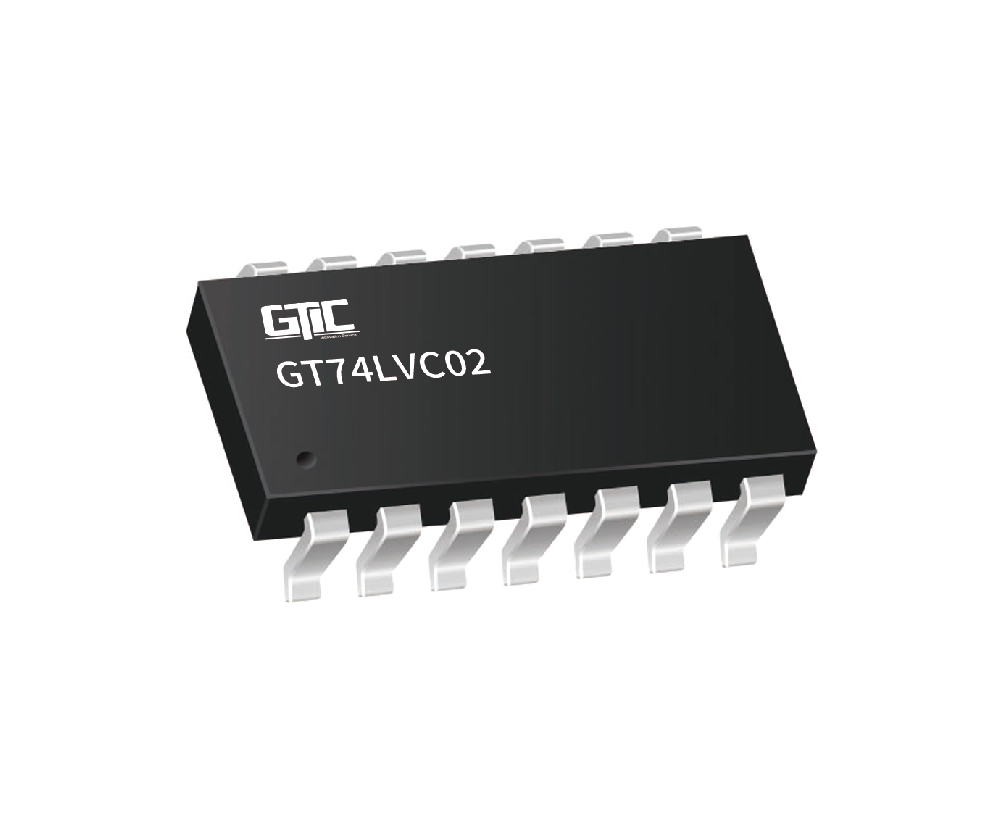

GT74LVC02

This quadruple 2-input positive-NOR gate is designed for 1.65-V to 5.5-VVcc operation.

The GT74LVC02 performs the Boolean function Y=A+Bor Y=A·B in positive logic.The CMOS device has highoutput drive while maintaining low static power dissipationover a broad Vcc operating range.

This device is fully specified for partial-power-downapplications usinglot.The lorf circuitry prevents damagingcurrent backflow through the device when the gate ispowered downandits output is floating.
