与门&与非门

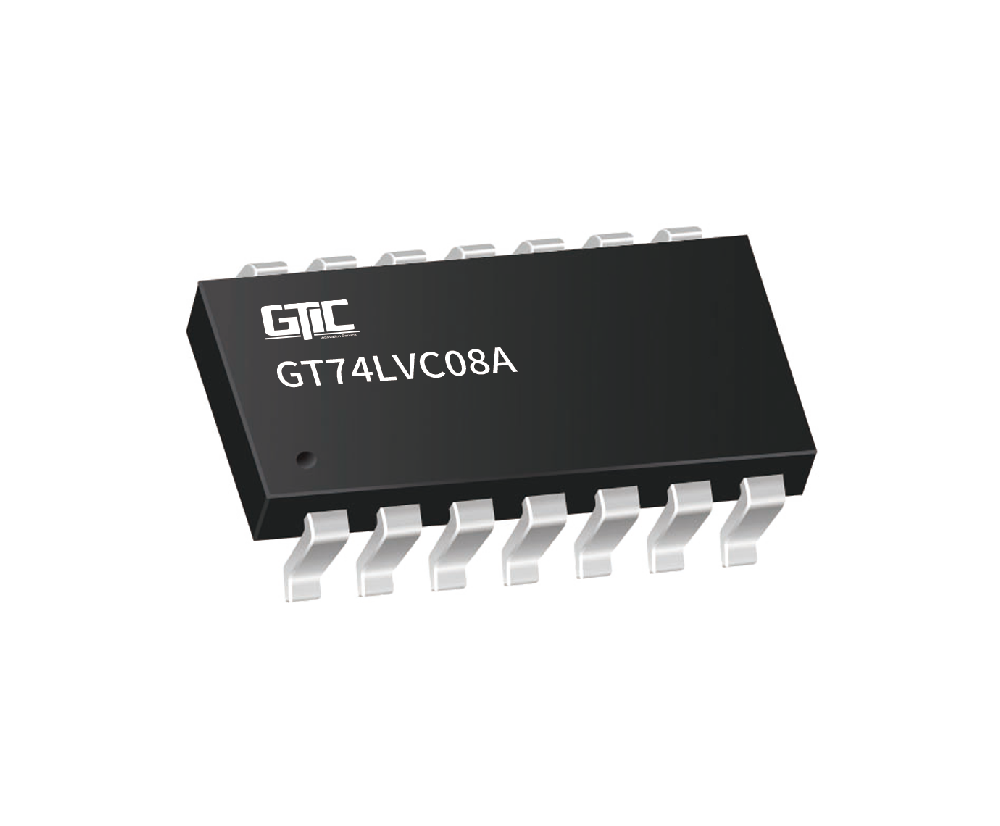

GT74LVC08A


GT74LVC08A quadruple 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.

The GT74LVC08A device performs the Boolean function Y=A × B or Y=(A‘+B’)’in positive logic.

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these device as translators in a mixed 3.3-V/5-V system environment.

特性

- Supports 5V VCC operation

- Inputs accept voltages to 5.5 V

- Provides down translation to VCC

- Low power consumption, 10-μA Max ICC

- ±24-mA output drive at 3.3 V

- Ioff supports live insertion, partial-power-down mode, and back drive protection


应用


- Active noise cancellation (ANC)

- Barcode scanner

- Blood pressure monitor

- CPAP machine

- Fingerprint biometrics

- HVAC: heating, ventilating, and air conditioning

- Network-attached storage (NAS)

- Servers - LED displays

- Network switches

- I/O expanders

- Base station processor board
