USB开关

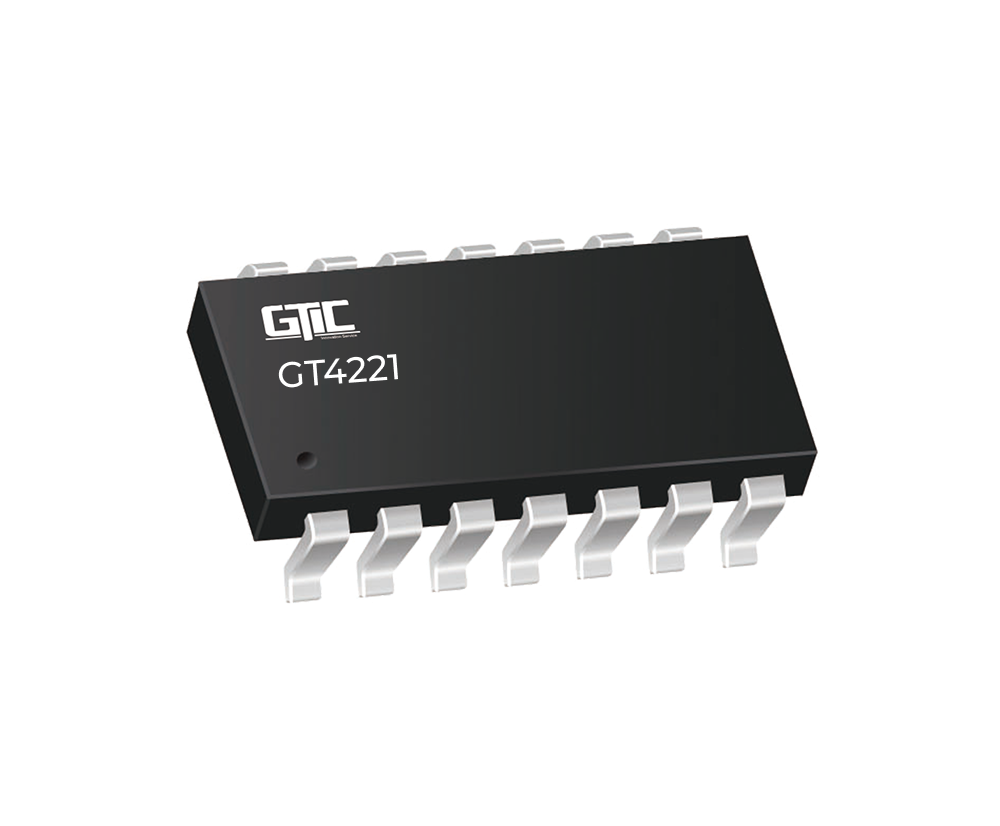

GT4221

The GT4221 is a high bandwidth, fast double-pole double-throw (DPDT) analog switch Its wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signals with good signal integrity. Each switch is bidirectional and offers little or no attenuation of the high-speed Signals at the outputs. Industry-leading advantages include a propagation delay of less than 250ps,resulting from its low channel resistance and low l/O capacitance. Its high channel-to-channel crosstalk rejection results in minimal noise interference.

The GT4221 is available in Green QFN2.0X1.5- 10L,QFN1.8x1.4-10L packages. It operates over an ambient temperature range of 40℃ to +85℃.
