模拟开关

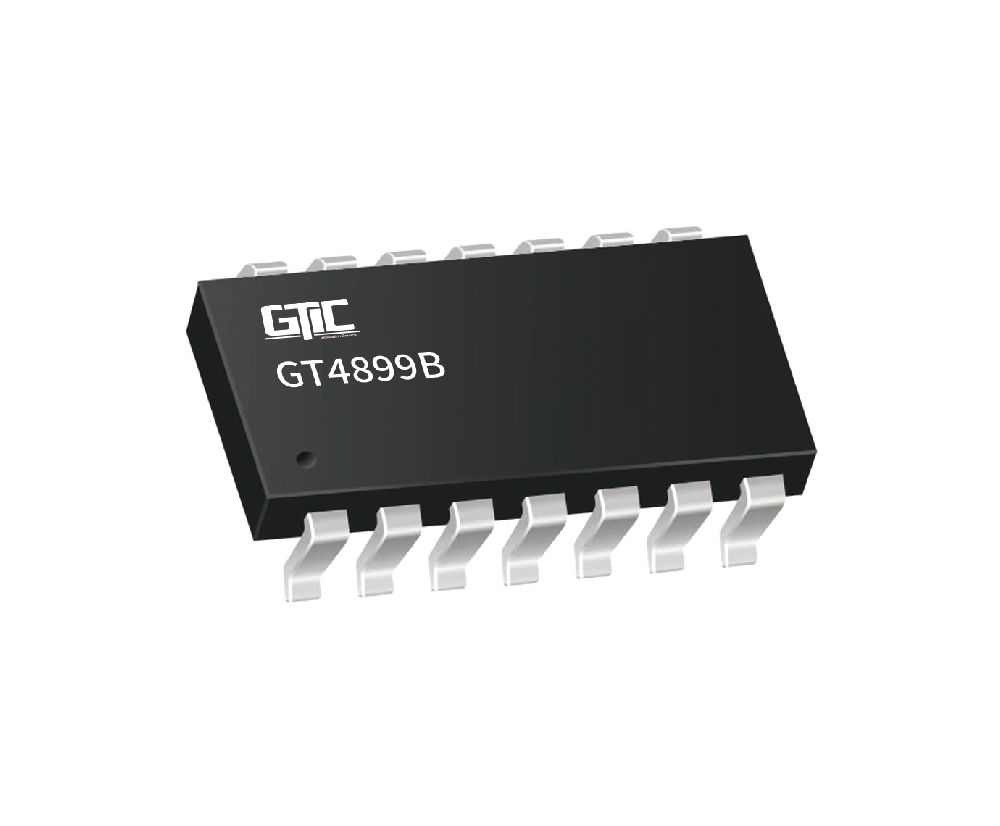

GT4899B
The GT4899 is a QPDT switch with one common control inputs targeted at dual SIM card multiplexing. It is optimized for switching the WLAN-SIM data and control signals and dedicates one channel as a supply-source switch. The switches are fully bi-directional, allowing both multiplexing and de-multiplexing operation. Break-beforemake operation is guaranteed. The device operates from a +1.65V to +5.5V supply and over the extended -40°C to +85°C temperature range. It is available in QFN-3×3-16L and UTQFN1.8×2.6-16L.
特性
- Low on-resistance: 3.5 Ω @ 4.5 V(typ)
- Low on-resistance flatness: 1 Ω @ 4.5 V(typ)
- Operate from 1.65 V to 5.5 V
- Rail-to-Rail signal switching range
- Fast switching speed:14ns @ 3.3 V(typ)
- High off isolation:-73dB @ 1MHz - Crosstalk:-89dB @ 10MHz
- -3dB bandwidth:350MHz
- Package:QFN-3×3-16L and UTQFN1.8×2.6-16L
应用
- Dual SIM card switch
- Cell phones
- Pad - Digital cameras
- PDAs
- Notebook
