模拟开关

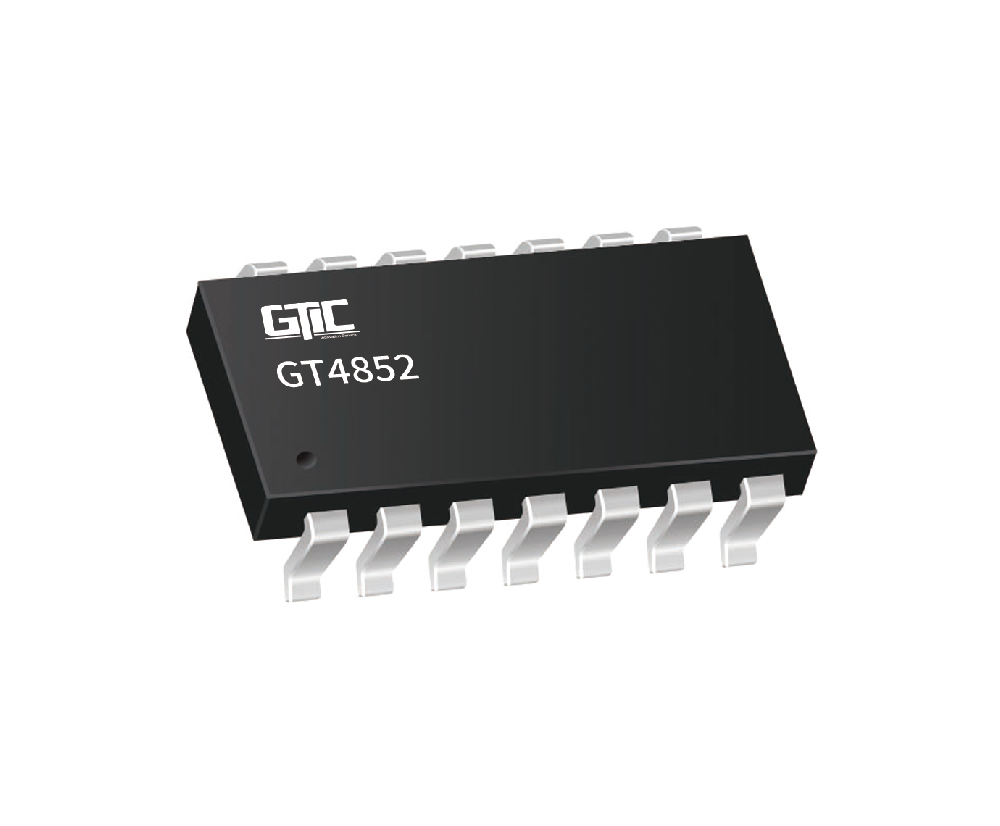

GT4852
The GT4852 is a CMOS analog IC configured as two 4- channel multiplexers. This CMOS device can operate from 2.5 V to 5.5 V. The GT4852 device are digitally-controlled analog switches. It has low on-resistance (22Ω TYP) and very low off-leakage current (1nA TYP). The GT4852 is available in Green SOP16, TSSOP16 and QFN-3×3-16L packages. It operates over an ambient temperature range of -40°C to +125°C.
特性
- High bandwidth: 440MHz
- High Off-Isolation:-84dB(RL=50 Ω,f=1 MHZ)
- Supply range: +2.5V to +5.5V - Low on-state resistance: 22Ω @4.5V
- Break-before-make switching - Binary address decoding on chip
- Operation temperature range:-40°C to +125°C
- Micro size packages:SOP16, TSSOP16, QFN-3*3-16L
应用
- Sensors
- Analog and digital multiplexing and demultiplexing
- A/D and D/A conversion
- Signal gating
- Battery-operated equipment
- Factory automation
- Communications circuits
- Appliances
