低压通用运放

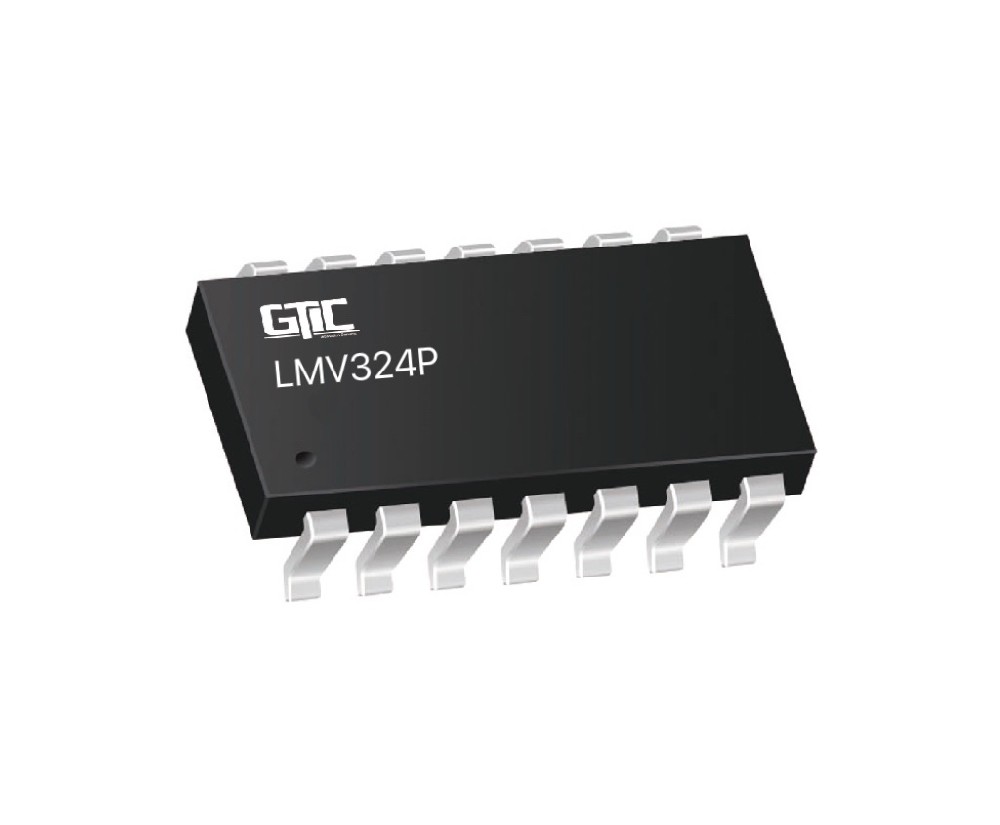

LMV324P
The LMV3XXP families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1.6MHz) and slew rate of 0.6V/μs. The op-amps are unity gain stable and feature an ultra-low input bias current.
The devices are ideal for sensor interfaces, active filters and portable applications. The LMV3XXP families of operational amplifiers are specified at the temperature range of -40°C to +125°C under single or dual power supplies of 2.2V to 5.5V.
特性
- High gain bandwidth:1.6 MHz
- Rail-to-rail input and output
- Low supply current: 65 μA/amplifier at 5 V
- Input voltage range: -0.1 V to +5.6 V with VS=5.5 V
- Supply range: +2.2 V to +5.5 V
- Operation temperature range: -40°C to +125°C
- Low Offset：±0.5mV MAX
应用
- Sensors
- Photodiode amplification
- Active filters
- Test equipment
- Driving A/D converters
