低压通用运放

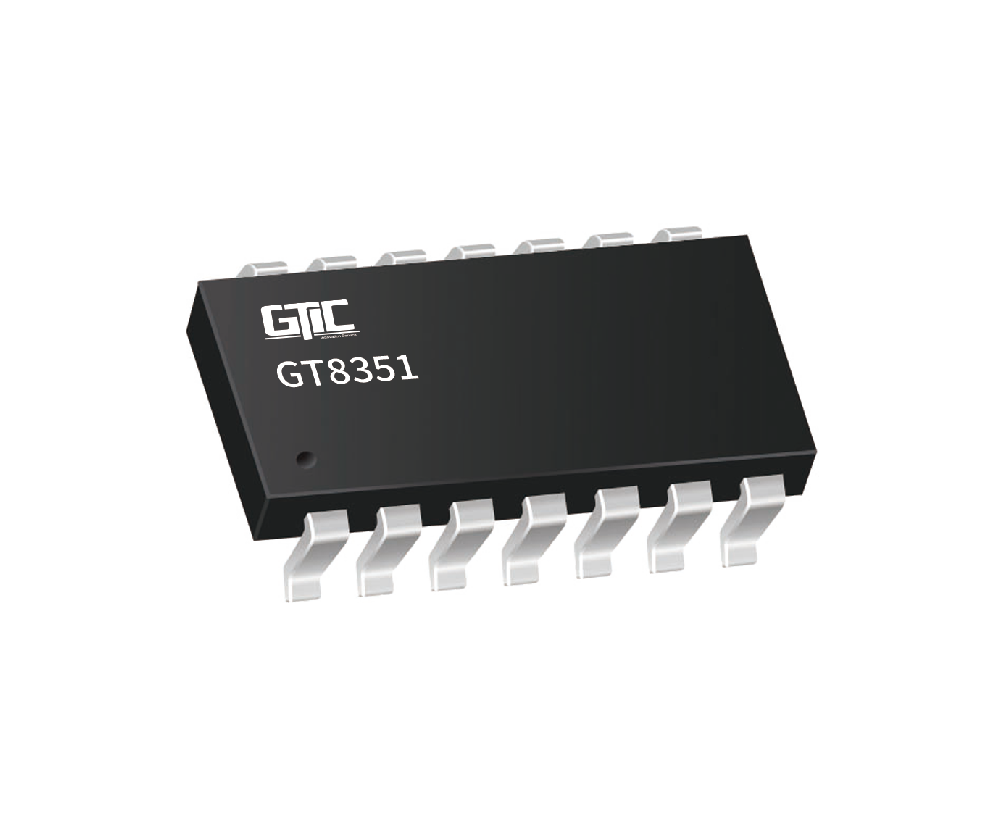

GT8351
The GT835X families of products are low-voltage low- power operational amplifiers that can be designed into a wide range of applications. The GT835X have a unity- gain bandwidth of 7MHz, a slew rate of 5V/μs, and a quiescent current of 0.42 mA/amplifier at 5V.
The GT835X provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage are 2mV for the devices. Their capacitive load capability is also good at low supply voltages. The operating range is from 1.8V to 5.5V.
特性
- High gain bandwidth: 7 MHz
- Rail-to-rail input and output
- Low supply current: 0.42mA/amplifier at 5 V
- Input voltage range: -0.1 V to +5.6 V with VS=5.5 V
- Supply range: +1.8 V to +5.5 V
- Operation temperature range: -40°C to +125°C
应用
- Sensors
- Photo diode amplification
- Active filters
- Test equipment
- Driving A/D converters
