低压通用运算放大器

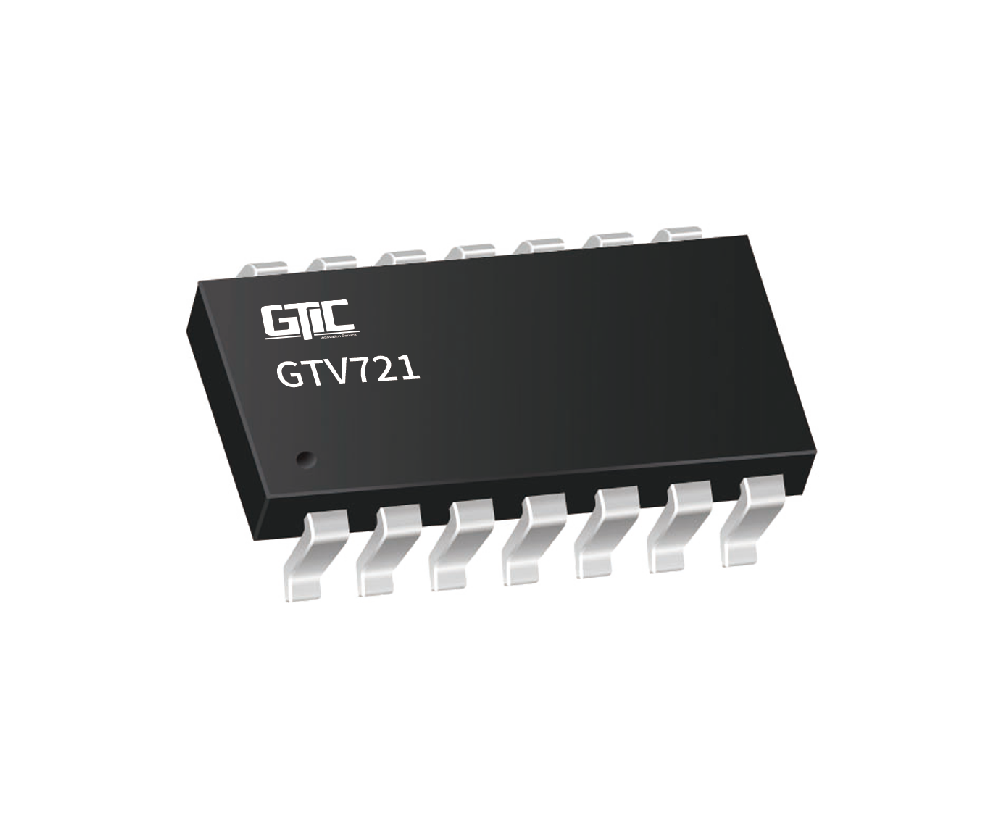

GTV721
The GTV72X families of products are low-voltage low- power operational amplifiers that can be designed into a wide range of applications. The GTV72X have a unity-gain bandwidth of 13MHz, a slew rate of 6.5V/μs, and a quiescent current of 700μA/amplifier at 5V. The GTV72X families of products are designed to provide optimal performance in low-voltage systems. They provide rail-to-rail output swing into heavy loads. The input common-mode voltage range includes ground, and the maximum input offset voltage are 3.5mV (over recommended temperature range) for the devices. Their capacitive load capability is also good at low supply voltages. The operating range is from 2.2V to 5.5V.
特性
- High gain bandwidth:13 MHz
- Rail-to-rail input and output
- Low supply current: 635 μA/amplifier at 5 V
- Input voltage range: -0.1 V to +5.6 V with VS=5.5 V
- Supply range: +2.2 V to +5.5 V
- Operation temperature range: -40°C to +125°C
应用
- Sensors
- Photodiode amplification
- Active filters
- Test equipment
- Driving A/D converters
