低压通用运算放大器

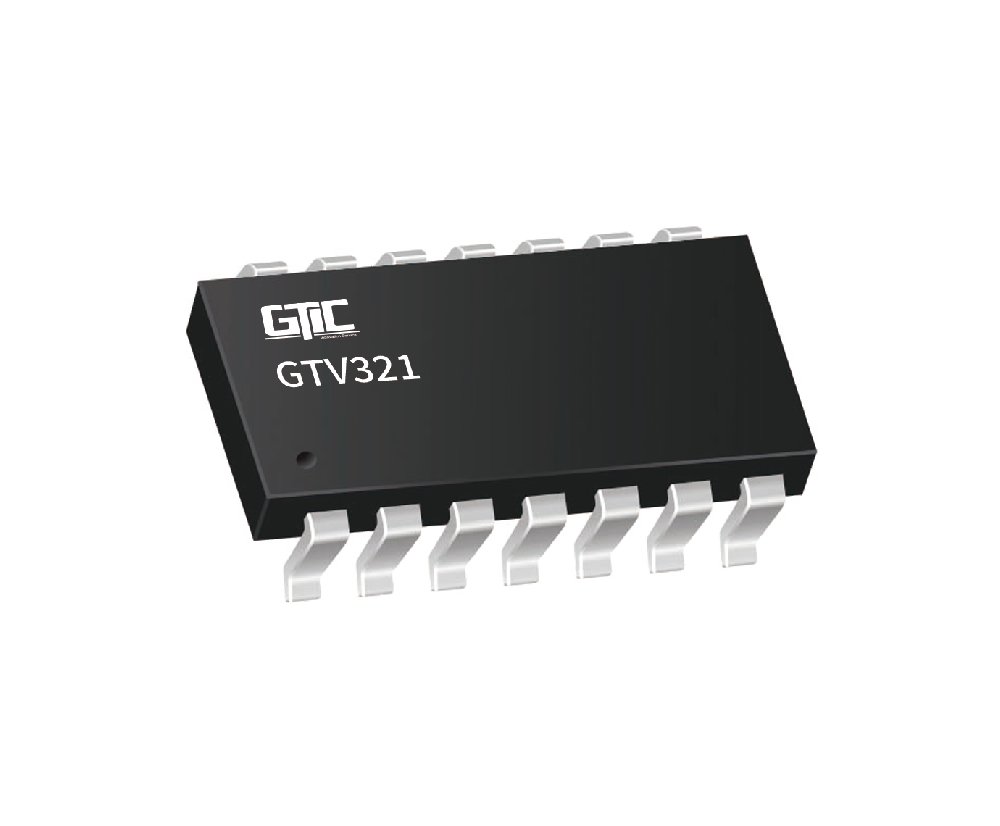

GTV321
The GTV3XX families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio, providing an excellent bandwidth (1MHz) and slew rate of 0.7V/μs. The op-amps are unity gain stable and feature an ultralow input bias current. The devices are ideal for sensor interfaces, active filters and portable applications. The GTV3XX families of operational amplifiers are specified at the temperature range of -40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
特性
- High gain bandwidth:1 MHz
- Rail-to-rail input and output
- Low supply current: 90 μA/amplifier at 5 V
- Input voltage range: -0.1 V to +5.6 V with VS=5.5 V
- Supply range: +2.5 V to +5.5 V
- Operation temperature range: -40°C to +125°C
应用
- Sensors
- Photodiode amplification
- Active filters
- Test equipment
- Driving A/D converters
